LED Wall Washer Light & LED Podwodny producent światła
Szczegóły Produktu:
Zapłata:
|
Material: | 316 stainless steel & transparent PC cover | Light Color: | RGB/R/G/B/W |
---|---|---|---|
LED Type: | Epistar | Control Mode: | remote control/external/WIFI/switch |
Input Voltage: | 12VAC/DC | IP Rating: | IP68 |
Rated Power: | 9w/12w | Installation: | surface-mounting |
High Light: | decorative LED light,marine led spotlights for boats |

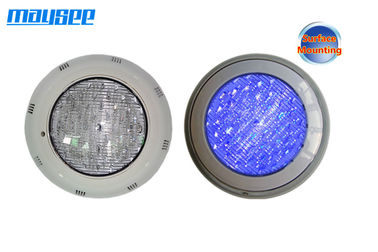

Underwater stainless steel surface mounted led pool light with DMX / WIFI Control
Specification
Model No. | MS-SSH-RGB-1212 | |
Input Voltage | 12VAC/DC | |
LED Q'ty | 12pcs | |
LED Type | high power (1w/pc) | |
Beam-angle | 30°/45°/60° | |
Rated Power | Red | 9w |
Green | 12w | |
Blue | 12w | |
White | 12w | |
RGB | 12w | |
Material | stainless steel & transparent PC cover | |
Light Source | RGB/R/G/B/W | |
Control Mode | WIFI/external/switch | |
Luminous Flux (Lm) | Red | 315-385Lm |
Green | 585-715Lm | |
Blue | 160-195Lm | |
White | 765-935Lm | |
RGB | 340-420Lm | |
Demension | ¢230mm(bottom)x¢135mm(top)x45mm(H) | |
Installation Method | surface-mounting | |
IP Rating | IP68 | |
Warranty | 2-year |
Advantages
1. IP68
2. With high precision assembly to go for IP68
3. RGB color-changing upon synchronous remote control
4. Available for SMD led, high-power led & COB led as the light-source combination
5. Surface-mounting via screws
6. Over-current protection design
Features
1. IP68 Waterproof (Structure water-proof)
2. Absolute RGB synchronization with patented RGB controller(with remote)
3. 6 kinds of RGB control method: Remote control, Wi-Fi Control, DMX Control, Remote & Switch control, Automatic control, External control.
4. 316 stainless steel lamp body to have the light be able to work under both fresh water and seawater
5. Transparent PC cover, anti-corrosion, shock-proof, safe transportation
6. Constant driver to make sure LED light working stably, avoid any flashing and noisy
7. Voltage:AC/ DC 12V, Frequency: 50/60HZ
8. High quality and brightness LED source
9. Color: RGB, 14 kinds of color changing mode / Single color – white, red, green, blue, yellow
10. Beam angle: SMD 3528-120°, SMD5050-120°, high power-25°or 30°or 45°or 60°;
11. Life span 50000 hours
12. Over current protection
Application
1) swimming pool / pond
2) waterfall / fountian
3) aquarium / spa
4) garden
Installation Instruction
1. Light should be set 30cm-40cm below the water level
2. The outlet for the conduit should be positioned so that Gland Adaptor and Attachment Bracket can be positioned well (Use “Template for Fiberglass Pool Installations” as provided to mark drill centres).
3. Glass conduit to outside wall of pool before backfilling.
4. Screw Attachment Bracket and Gland Adaptor to wall sealing with silicone, seal screws with silicone sealant before backfilling.
5. Install light, wind 2 coils of flex around clips to enable easy removal of Light for servicing. (See the lower left corner).
6. The transformer needs to be installed in an easily accessible area to allow for servicing when required.
